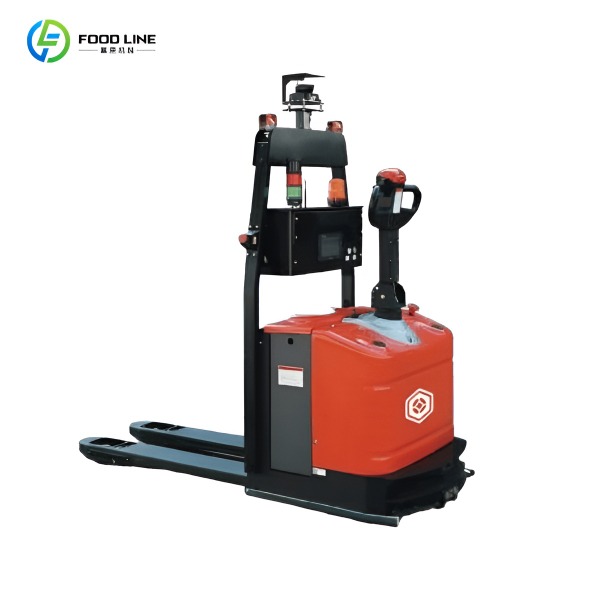

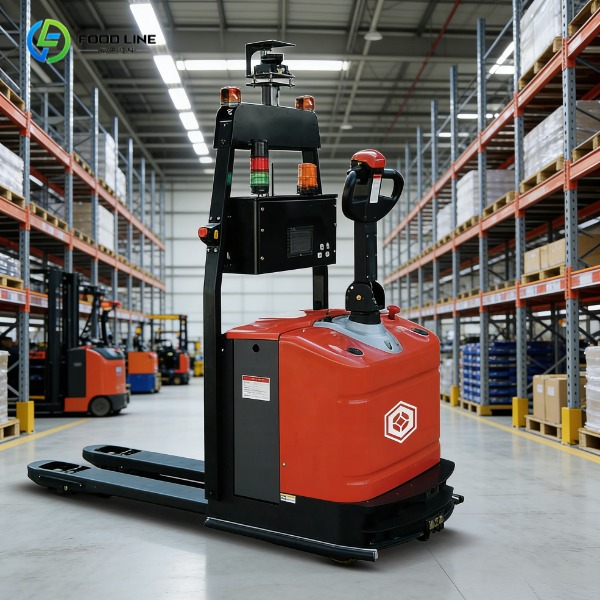

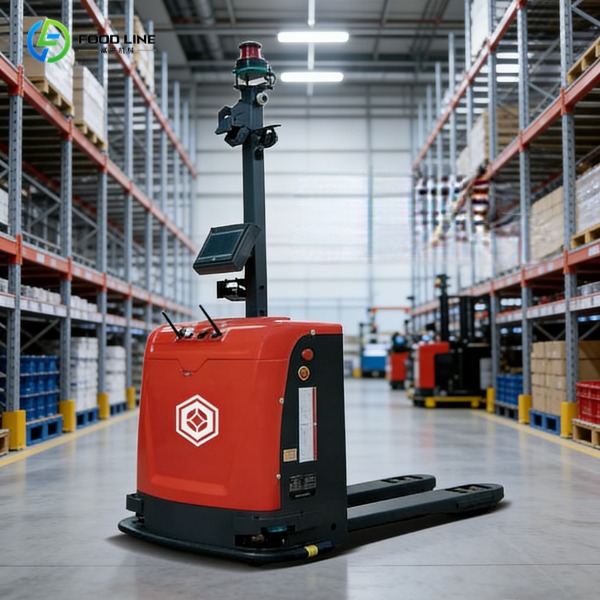

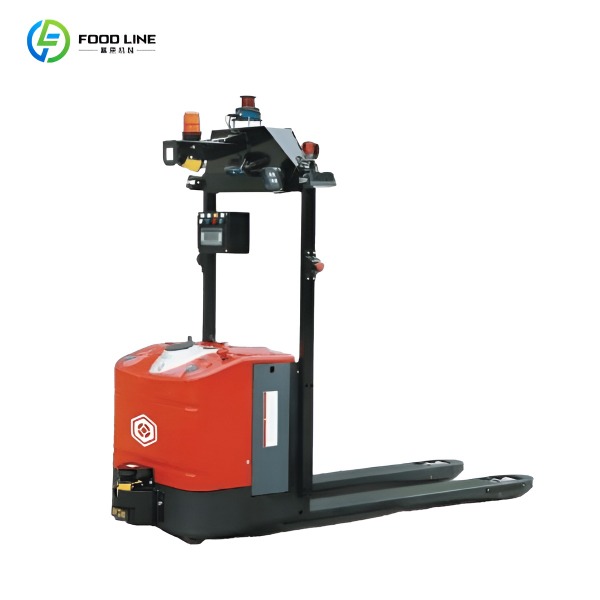

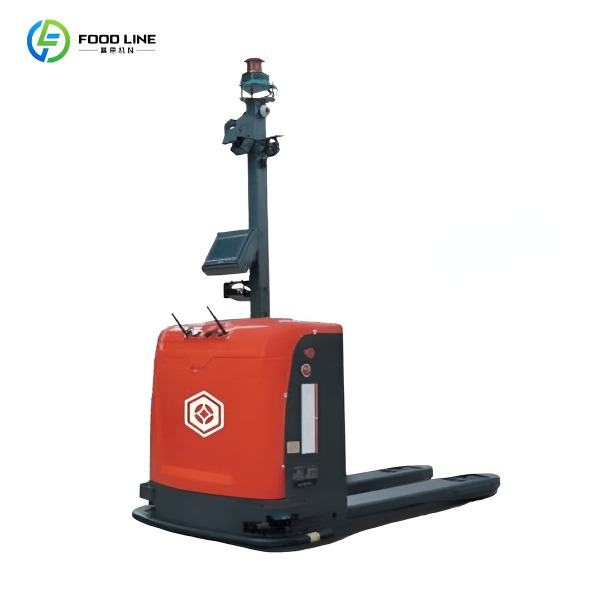

The automatic pallet stacker is intelligent handling equipment specifically designed for industrial logistics scenarios. It is widely used for point-to-point material transfer between floor warehouses and production lines, as well as between different processes within production lines. It can replace manual labor in repetitive and high-intensity handling operations, helping factories achieve automated upgrades in warehousing and production processes, and significantly improving logistics turnover efficiency.
Parameter of the Pallet Stacker Truck
| Parameter | Details | |||||
| Model | FL-15 | FL-20A | FL-20B | FL-20C | FL-20D | FL-30 |
| Type | Handling Type | |||||
| Navigation Method | SLAM | Laser | ||||
| Rated Load(kg) | 1500 | 2000 | 3000 | |||
| Maximum Lifting Height(mm) | 205 | |||||
| Maximum Travel Speed (Full Load/No Load)(km/h) | 5/5 | 8/8 | 5/5 | |||
| Minimum Turning Radius(mm) | 1453 | 1503 | 2306 | 2180 | 1865 | 1482 |
| Right-angle Stacking Width (Pallet 1000*1200)(mm) | 2208 | 2208 | 3920 | 2915 | 2589 | 2235 |
| Positioning Accuracy(mm) | ±5 | |||||
| Communication Method | 5G/WIFI | |||||
| Battery Capacity (Standard)(V/Ah） | 48/40 | 24/173 | 24/202 | 48/100 | ||
| Vehicle Weight (Including Battery)(kg) | 420 | 560 | 695 | 830 | 750 | |
| Standard External Dimensions (LWH)(mm) | 1644*932* 1904 | 1644*932* 1904 | 2494*1286* 1904 | 2357*850* 2080 | 2034*955* 2045 | 1668*855 |
Features of the Pallet Stacker
- Laser Navigation: The automatic pallet stacker utilizes laser SLAM navigation and laser navigation technology, eliminating the need for magnetic strips, QR codes, or other auxiliary facilities, making deployment simpler and more flexible.
- High-Capacity Battery: Equipped with a high-capacity lithium battery, the machine boasts strong endurance and supports long-term continuous operation.
- Safety Protection Design: Multiple safety protection designs, integrating laser and vision technologies for comprehensive protection, ensure intelligent safety and adaptability to complex workshop environments.
- Compact Design: Optimized body structure, compact and flexible, with a small turning radius, suitable for narrow warehouse and production spaces.
- One-Button Switching Design: The AGV robot supports one-button switching between manual and automatic operation, offering flexible operating scenarios and a high degree of flexibility.
- Intelligent Instrument Panel: An intelligent instrument panel interface provides clear vehicle information, facilitating convenient and quick operation and diagnostics.
Advantages of the Autonomous Pallet Stacker Truck
- High Efficiency: The automated forklift robot can replace manual labor for material handling, reducing labor costs while improving material transfer efficiency and shortening production and warehousing turnover cycles.
- Flexible Deployment: Laser SLAM navigation requires no modification to the site environment. Short deployment cycles allow for rapid adaptation to production line adjustments and warehouse layout changes, flexibly meeting enterprise development needs.
- Precise and Stable: The automatic pallet stacker employs high positioning accuracy and servo control, ensuring zero errors in handling and docking operations, avoiding material loss caused by human error.
- Safety: Multiple safety sensors and laser vision fusion protection enable active obstacle avoidance and emergency braking, eliminating operational safety hazards and adapting to complex industrial scenarios.
- Low Cost: Lightweight design reduces energy consumption, large-capacity lithium batteries reduce charging frequency, and integrated software reduces maintenance and learning costs, resulting in a lower total lifecycle cost.
- Wide Compatibility: The AGV industrial robot covers load requirements from 1.5 tons to 3 tons. It is flexibly applicable to warehousing, production workshops, logistics transfer, and other scenarios, meeting the handling needs of different industries.
- Easy to Use: Equipped with integrated operating software, common operations can be quickly performed, significantly reducing the learning curve.
FAQ
It is mainly suitable for scenarios such as flat warehouses, internal and external processes of production lines, and logistics transfer areas. It is compatible with multiple industries such as food, home appliances, machinery manufacturing, and e-commerce warehousing, and can be used in narrow spaces or complex production line layouts.
It supports standard 1000×1200mm pallets, and some models can be adapted to larger 2000×2000mm pallets. It also supports customized structures according to on-site pallet specifications, ensuring strong docking compatibility.
The robot utilizes map-based multi-sensor system recognition technology to ensure consistent movement across multiple AGV robots. It adapts to the automated workflow needs of large-scale warehousing and production lines, improving overall operational efficiency.
The pallet stacker truck supports full-dimensional customization, allowing for personalized design based on requirements such as load capacity, navigation method, vehicle size, range, and functional expansion. It is also compatible with enterprise-specific production line/warehouse layouts.
Why Choose Foodline Machinery?
Our company specializes in the research, development, production, and sales of intelligent pallet stacker trucks, possessing years of industry experience and project implementation expertise. We have independent R&D capabilities, continuously innovating in core technologies such as autonomous navigation, motion control, safety protection, and multi-robot scheduling. Our products undergo rigorous testing from component selection to overall machine debugging, ensuring stable and reliable performance. Our products are widely used in warehousing and logistics, automotive, and smart manufacturing industries, and we can provide customized solutions and full-process technical services. With mature technology, stable quality, and comprehensive after-sales service, we provide efficient and reliable integrated industrial automation material handling solutions to global customers, becoming a trusted partner in industrial automation.
