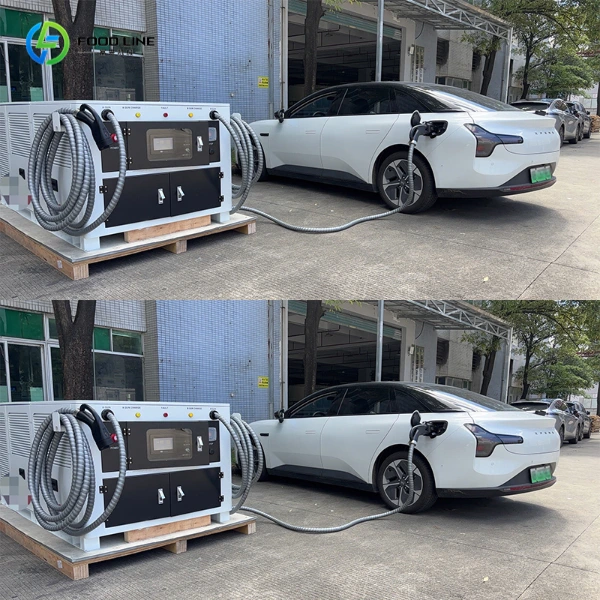

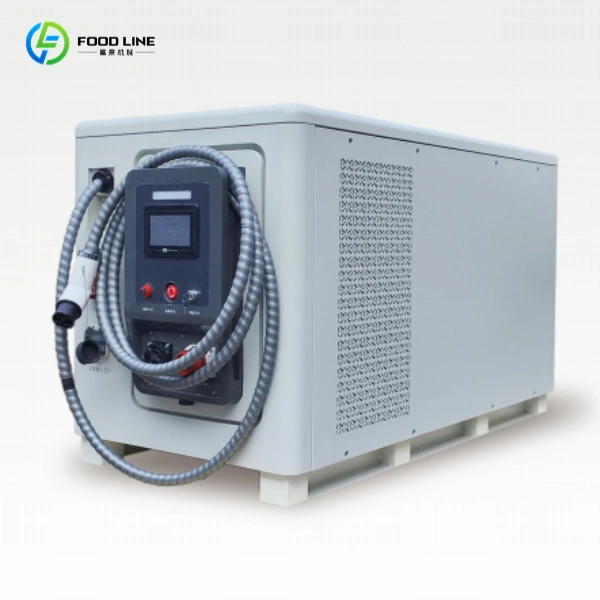

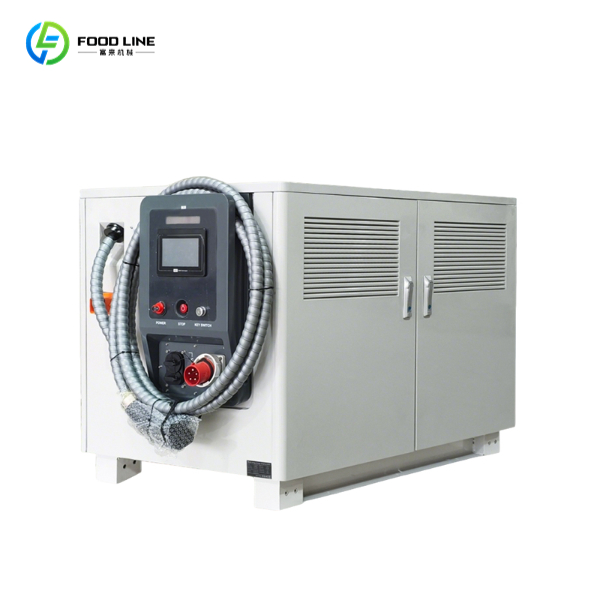

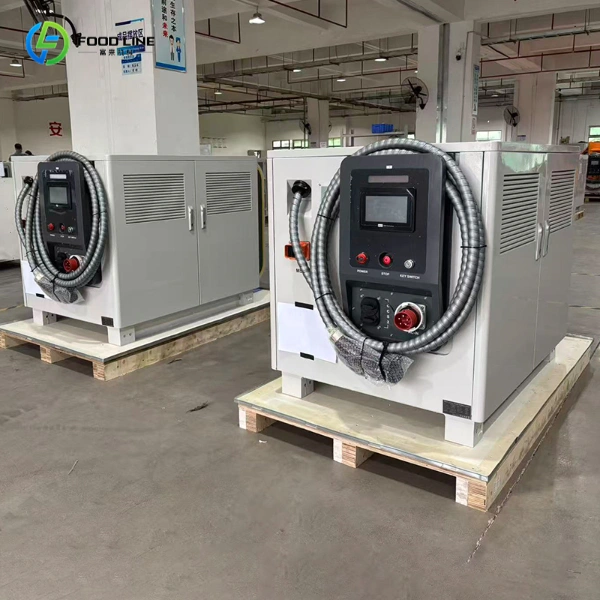

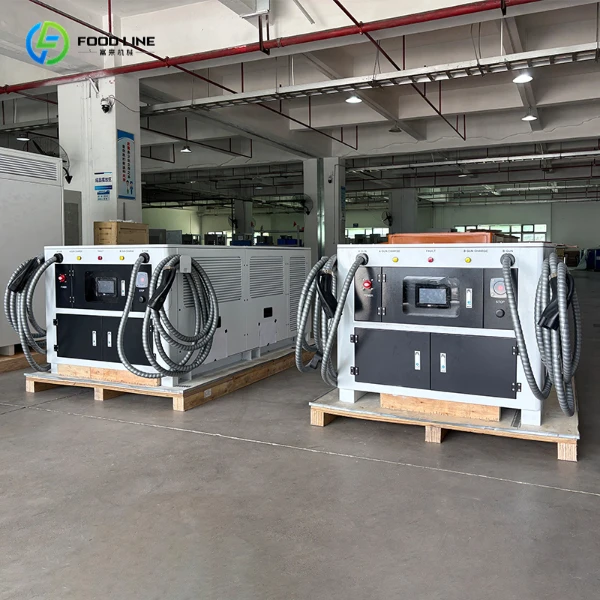

The electric car emergency charger is a new type of energy replenishment equipment that integrates large-capacity energy storage, DC fast charging, intelligent control, and mobile deployment. It requires no grid expansion or infrastructure construction. It can quickly respond to needs in scenarios such as emergency rescue, temporary energy replenishment, outdoor operations, and commercial operations. And it enables the vehicle to move with its battery and can plug in and charge instantly. It is the core equipment for solving the energy replenishment problem of new energy vehicles and improving emergency energy security.
Parameter of the Electric Car Emergency Charger
| Parameter | Details | ||
| Model | FL-60 | FL-90 | FL-120 |
| Battery Capacity | 75KWH | 100KWH | 140KWH |
| Output Power | 60KW | 90KW | 120KW |
| Output Voltage | DC200V~1000V | DC200V~1000V | DC200V~1000V |
| Output Current | 0~150A | 0~150 A | 0~250A |
| HMI | 7″ Touching Screen | ||
| Charge Mode | Single-player/OCPP1.6J | ||
| Working Temperature | -10℃~60℃ | ||
| Charger Cable Length | 7M | ||
| Charger Gun | GBT/CCS1/CCS2/CHAdeMO | ||
| Recharge Mode 1 | EV DC Charger | ||
| Recharge Mode 2 | AC380V/30KW | AC380V/20KW | AC380V/40KW |
| Size | 1580*925*1050MM | 2034*920*1120MM | 2300*1200*1000MM |
| Weight | ≈920KG | ≈1200KG | ≈1682KG |
| Protection Level | IP 54 | ||
Features of the Electric Car Emergency Charger
- Intelligent Management: The mobile charge station has a 7-inch touchscreen and supports local independent operation. It can realize background monitoring, billing, and maintenance.
- Dual-mode Charging: The portable ev charging station can charge via the power grid or supplemented by other DC charging piles, providing flexible energy storage replenishment methods.
- Multiple Power Options: The machine offers power options of 60kW, 90kW, and 120kW, and capacity options of 75kWh, 100kWh, and 140kWh, covering different needs such as emergency rescue, commercial operation, and large-scale power supply.
- Full-scenario Compatibility: The charging station for mobile uses a wide-voltage DC output, adaptable to mainstream electric passenger vehicles, commercial vehicles, buses, etc. It supports multiple interfaces including Chinese national standards, European standards, American standards, and Japanese standards, making it suitable for the global market.
- Integrated Mobile Design: The mobile storage charging station integrates energy storage battery, charging and discharging module, control system and heat dissipation system into one compact structure. So it can be flexibly transported and quickly deployed, without being restricted by fixed site and power grid conditions.
Advantages of the Mobile Car Charging Station
- Flexible: Suitable for scenarios without power grid or with weak power grid, such as road rescue, highway emergency response, outdoor operations, exhibition activities, and temporary power replenishment.
- Fast Charging: The electric car emergency charger features up to 120 kW DC fast charging, with high current output, which can quickly improve battery life and alleviate the pressure of queuing for charging.
- Safe and Stable: The machine has an IP54 protection rating and operates stably over a wide temperature range. It is unaffected by harsh outdoor environments such as rain, snow, high and low temperatures, has a low failure rate, and a long service life, significantly reducing maintenance costs.
- Intelligent Operation: You can connect the portable electric car charging station to the charging operation platform to achieve remote monitoring, billing, and dispatching. It supports commercial operation modes such as shared charging, rescue services, and leasing.
FAQ

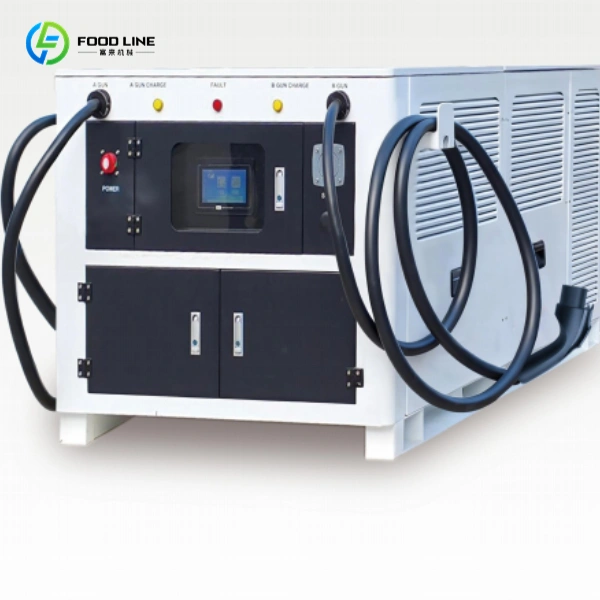

Some models with dual charging guns, which can support charging two vehicles at the same time. The power of the two guns can flexibly allocate, greatly improving the charging efficiency for multiple vehicles.
The battery has a cycle life of more than 6,000 cycles, which can last for 8-10 years based on daily use. Core components, such as the charging and discharging module and the main control system, have guarantee for 3 years and have lifetime paid maintenance.
Yes. The electric car emergency charger features a reinforced overall structure, making it suitable for long-term mobile use in vehicles, rescue vehicles, and engineering vehicles.
Sure! This is the biggest advantage of portable electric vehicle charging stations: they come with their own batteries, do not rely on the power grid, and can plug in and charg instantly.
