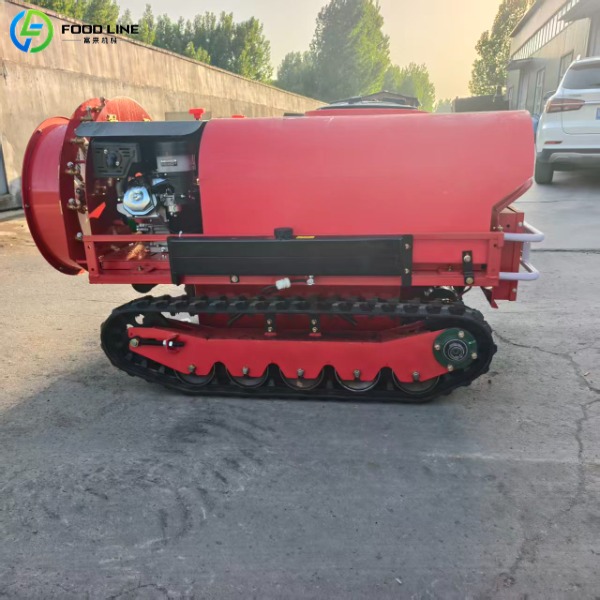

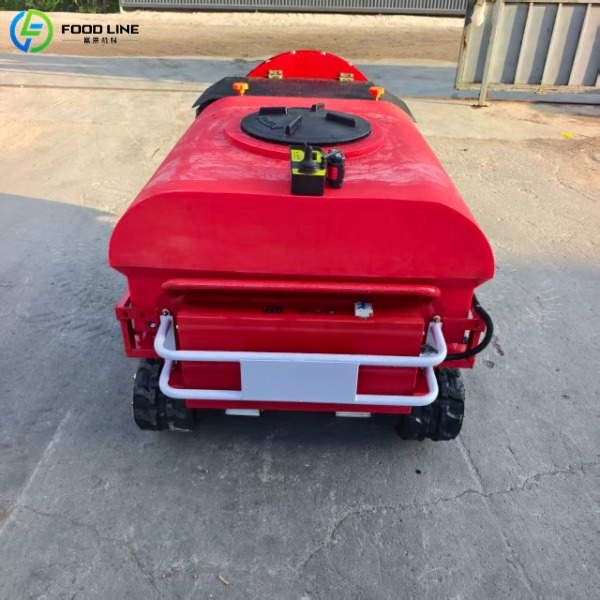

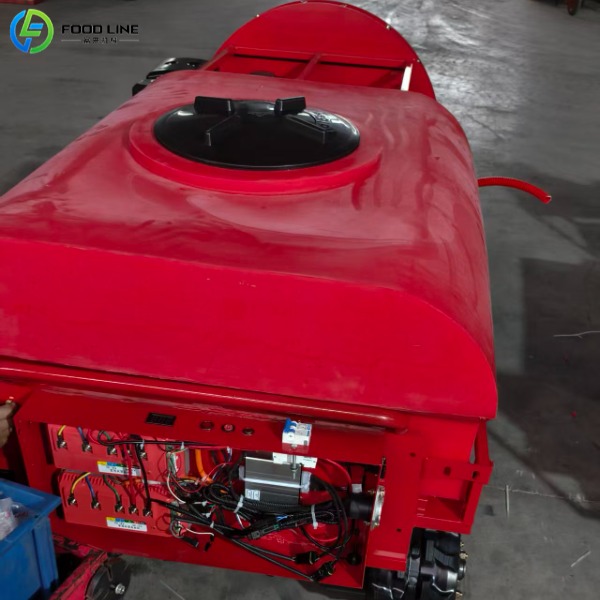

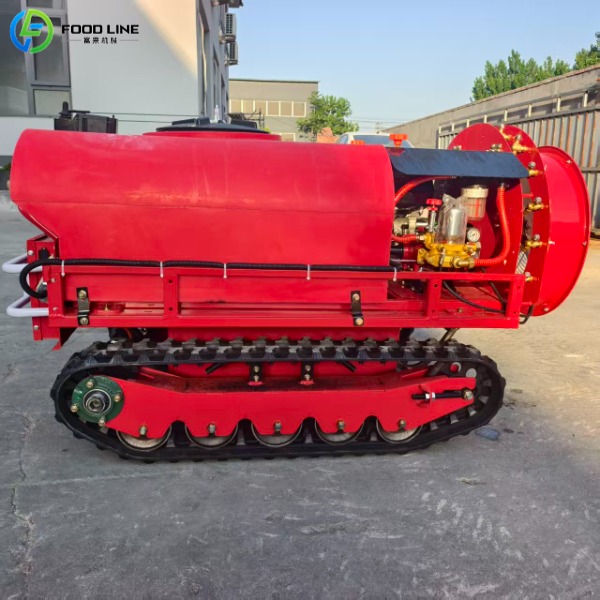

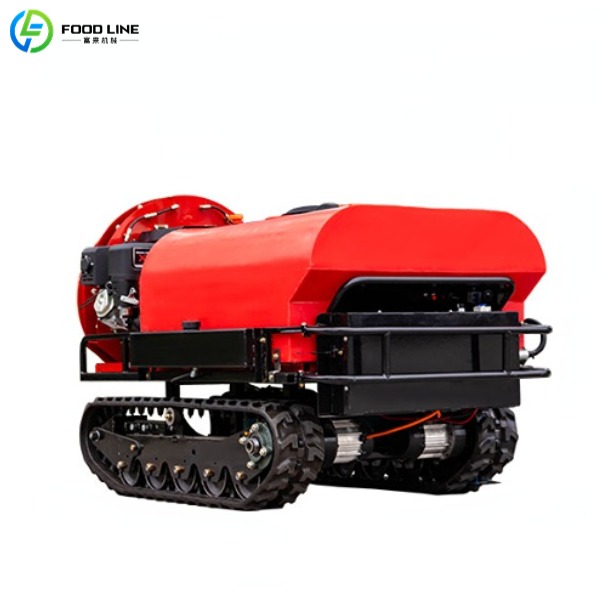

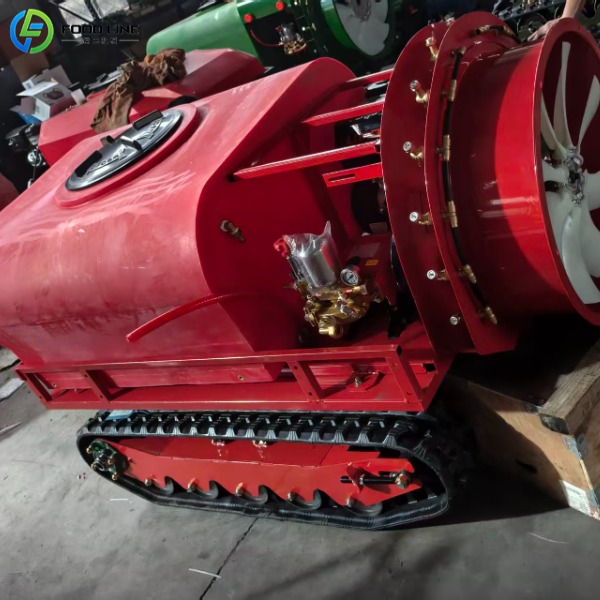

The tracked remote control sprayer is an intelligent spraying system designed specifically for agricultural crop protection. Featuring a tracked undercarriage that ensures excellent mobility and stability, it is suitable for spraying operations in orchards, open fields, greenhouses, and areas with complex terrain. With a large 400L tank and utilizing air-assisted spraying technology, the machine employs high-speed airflow to atomize the liquid and deliver it evenly to the crop canopy, thereby enhancing coverage and adhesion. Compared to traditional methods, the air-assisted design reduces material waste and improves crop protection efficiency. The tracked chassis adapts to challenging environments, such as muddy ground, slopes, and orchards, effectively reducing the intensity of manual labor.
Parameters of the Remote Sprayer
| Parameter | Details |
| Model | FL-400F |
| Cabinet Capacity | 400L |
| Track Width | 18 cm |
| Track Grounding Length | 135 cm |
| Spray Method | Air-driven |
| Quantity of Spray Nozzles | 12 pieces |
| Net Weight | 515 KG |
| Size | 1750*1000*1150 mm |
| Spray Flow | 0 – 0.5 L/min |
| Quiet Wind Range | Width 12m (on both sides), height 6m |
| Travel Speed | 0 – 75m/min ( 9-speed remote control) |
Features of the Remote Control Sprayer
- Crawler-type Undercarriage: The airblast orchard sprayer features a crawler chassis design, offering superior terrain adaptability compared to standard wheeled models. It maintains stable operation on soft soil, muddy paths, and slopes, minimizing the risk of getting stuck or slipping.
- Air-assisted Spraying System: Utilizing an air-driven spraying method, a powerful airflow assists in dispersing the chemical solution. This ensures droplets cover plant leaves, branches, and the inner canopy more uniformly, thereby enhancing spraying effectiveness.
- High-capacity Tank: With a 400L reservoir, the remote control sprayer for agriculture holds a large volume of chemical solution. This reduces the frequency of refills and extends continuous operation time, making it ideal for large-scale agricultural crop protection tasks.
- Remote Control Operation: The blast sprayer supports remote control operation, allowing the operator to adjust the machine’s direction and speed based on the working environment, ensuring more flexible and safe crop protection operations.
Advantages of the Remote Control Sprayer
- Improved Plant Protection Efficiency: Compared to traditional manual knapsack spraying, this air blast sprayer enables continuous, automated operation, significantly reducing labor requirements and boosting spraying efficiency across large farmlands and orchards.
- Reduced Labor Intensity: Remote control operation combined with an automated drive function eliminates the need for personnel to carry heavy tanks for extended periods or enter the spraying zone, thereby reducing physical strain and improving working comfort.
- Enhanced Spray Coverage: Air-assisted technology drives the spray deep into the crop canopy, improving coverage on both the upper and lower leaf surfaces as well as within dense foliage. It ensures more comprehensive plant protection.
- Adaptability to Complex Environments: The tracked chassis offers superior off-road capability, allowing the equipment to operate in orchards, mountainous terrain, and wetlands that are difficult for traditional machinery to access. This maximizes equipment utilization.
FAQ
It has a large-capacity 400L chemical tank, allowing for the storage of a substantial amount of liquid and reducing the frequency of refills. It is suitable for use in medium- to large-scale cultivation areas.
No. It operates via remote control, allowing personnel to control the machine’s forward and backward movement as well as its speed.
The remote control sprayer’s air-assisted spraying system offers extensive coverage. In still-air conditions, the spray swath reaches approximately 12 meters in width and 6 meters in height, meeting the majority of spraying requirements.
It is primarily used in agricultural settings such as orchards, farmlands, tea plantations, nurseries, and greenhouses. It is suitable for plant protection tasks including pest control, sterilization, disease prevention, and foliar fertilization for fruit trees.
