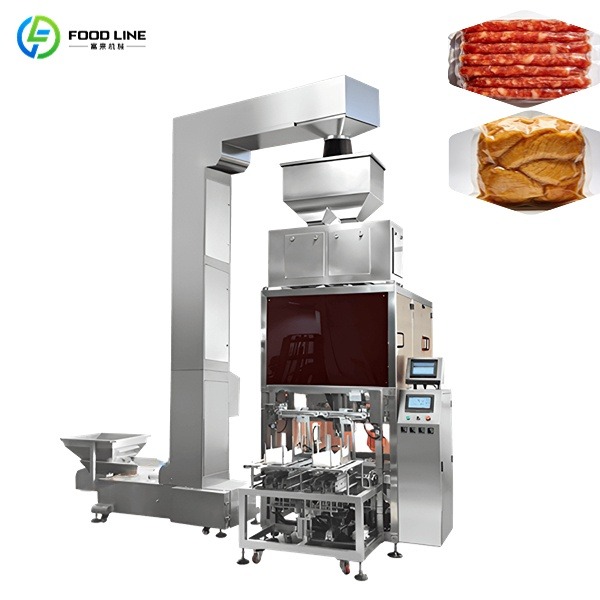

The automatic vacuum packaging machine integrates metering, bag making, filling, shaping, vacuuming, and sealing. It can package granular materials into regular rectangular brick-shaped bags with a neat appearance and good sealing performance. It is convenient for stacking, transportation, and storage, and is suitable for continuous and automated production needs.
Parameter of the Food Vacuum Packaging Machine
| Parameter | Details |
| Model | FL-30 |
| Packing Range | 0.3~2.5KG |
| Suitable Material | Granules |
| Packing Speed | 800-1200 bags/h |
| Division Value & Accuracy Class | ±1-5g |
| Power Supply & Power Consumption | 380V 50Hz 10KW |
| Air Source & Air Consumption | 0.55~0.7MPa 12m³/h |
| Installation Height | L5119*W2658*H3856 |
| Weight | 850KG |
How to Use the Double Station Vacuum Packing Machine?
- Feeding: Granular materials are automatically conveyed to the weighing hopper via a feeding system, ensuring a stable and continuous material supply without manual replenishment.
- Weighing: A high-precision weighing module accurately weighs the materials. The packaging range covers 0.3~2.5kg, with a graduation value and accuracy class of ±1-5g. Strictly meeting packaging weight accuracy requirements.
- Bag Retrieval: A robotic arm automatically grabs packaging bags from the bag magazine, preparing them for the subsequent bag opening process. It does not require manual bag retrieval throughout the process.
- Bag Opening: The machine uses vacuum adsorption or mechanical expansion technology to fully open bags, ensuring smooth material filling and preventing jamming and leakage.
- Filling: The weighed material is precisely injected into the opened packaging bag, efficiently completing the filling process and ensuring uniform filling volume.
- Vacuum: The filled packaging bag undergoes a six-sided, all-around vacuum extraction to completely remove air from the bag, effectively extending the product’s shelf life while maintaining the aesthetically pleasing packaging.
- Sealing: After vacuum extraction, the bag opening is immediately heat-sealed to firmly lock in the vacuum state. This prevents air backflow and ensures the packaging is airtight.
- Finished Product Output: The equipment automatically conveys vacuum-sealed finished packages out. It can directly feed them into stacking or subsequent processing stages, realizing assembly-line operation.

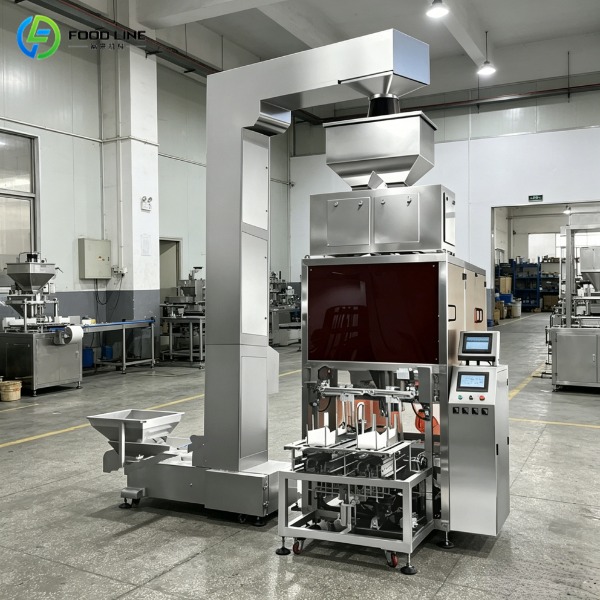

Features of the Industrial Vacuum Packing Machine
- High-precision Control: The automatic vacuum packaging machine utilizes 5 servo motors for omnidirectional control, significantly improving operational stability. It ensures precise operation even during high-speed production.
- Quick Mold Change Design: Vacuum molds can change within 3 minutes without additional tools. It adapts to rapid production transitions for multiple product specifications.
- Intelligent Parameter Storage: The fully automatic vacuum packer supports saving multiple sets of operating parameters for different specifications. One-click switching adapts to new packaging specifications, significantly shortening debugging time.

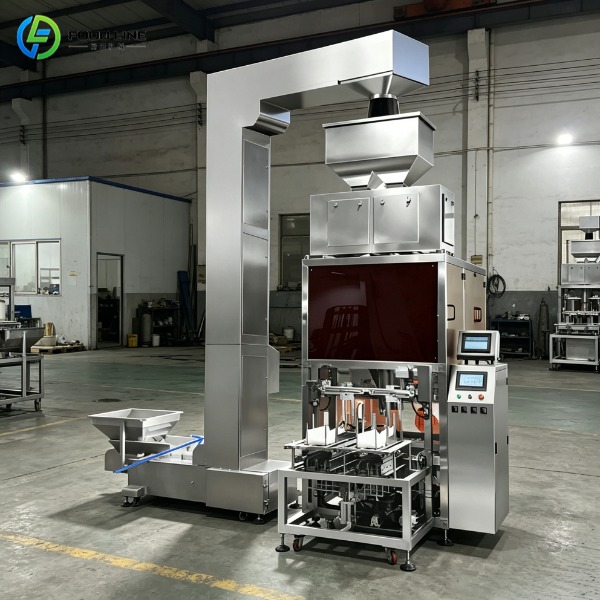

- Controllable Vacuum: The smart vacuum packaging equipment uses an electronic pressure detection module to monitor and precisely control the vacuum level in real time, adapting to the preservation needs of different materials.
Advantages of the Automatic Vacuum Packaging Machine
- Vacuum Packaging: Vacuum packaging design effectively prevents moisture and oxidation, extending the product’s shelf life.

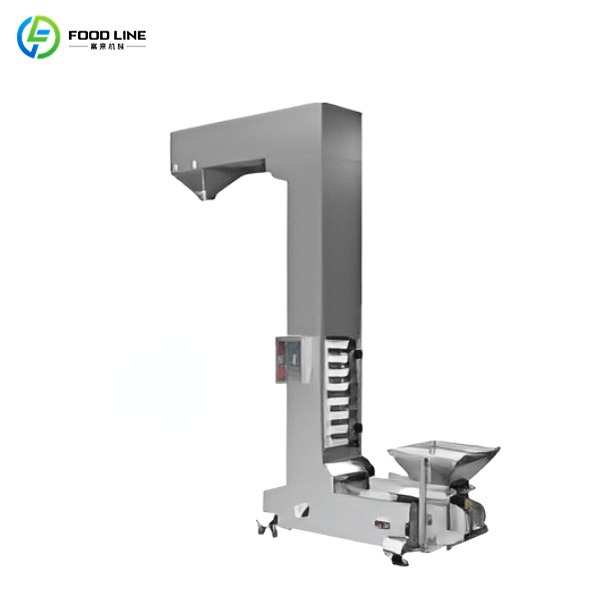

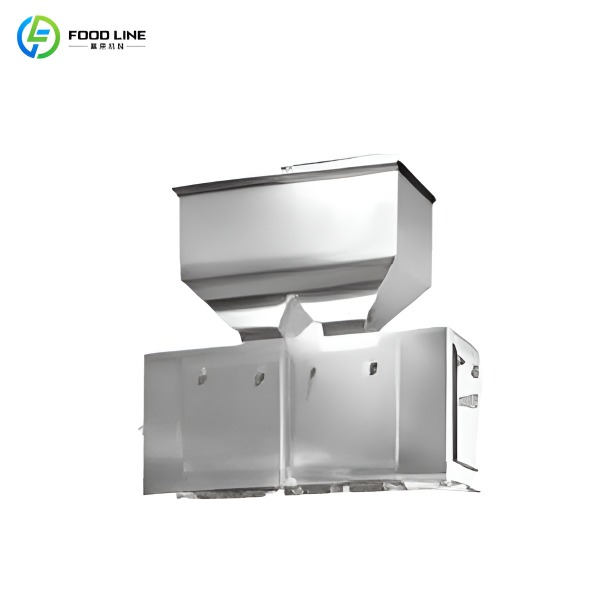

- High Efficiency: The automatic vacuum packaging machine adopts a dual-station design with integrated processes, combined with a Z-type elevator and a double-head weighing scale. It can achieve stable output and meet the needs of industrial-grade mass production.

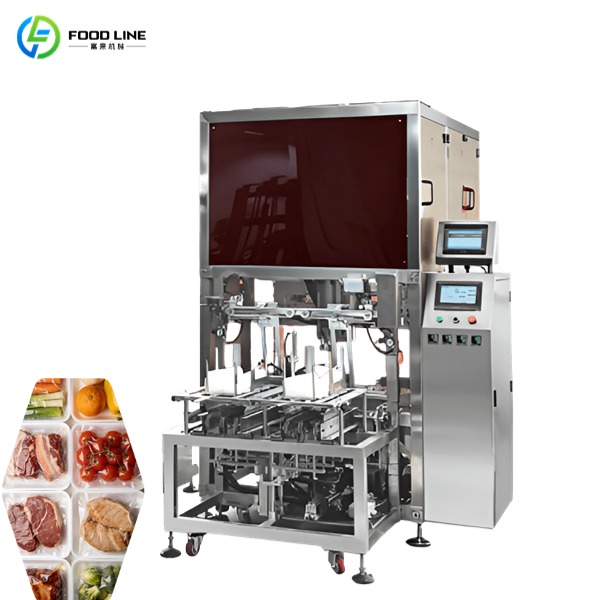

- Highly Automated: The granule vacuum packaging machine integrates metering, filling, vacuuming, sealing, and finished product conveying. A single main unit can complete the core packaging process. This reduces manual intervention and lowers labor costs.
- Wide Range of Applications: The food vacuum packaging machine features rapid mold change and multi-specification parameter storage, easily switching between different weight packaging from 0.3 to 2.5 kg. It is suitable for various pellet production scenarios, such as food, feed, and industrial pellet industries.
FAQ
The standard capacity of the automatic vacuum packaging machine is 800-1200 packs/hour, with the specific speed depending on the material characteristics and packaging specifications.
The vacuum packaging machine primarily functions as a vacuum pump, but also supports an optional gas inflation function, allowing you to flexibly choose the option that best suits your material preservation needs.
The the vacuum machine for packing can package weights ranging from 0.3 to 2.5 kg with an accuracy of ±1-5 g.
The food vacuum packaging machine commonly uses PE composite film, PA and PE composite film, and aluminum foil packaging.
Your Trusted Partner- Foodline Machinery
We have been deeply involved in the field of granular vacuum packaging for many years, possessing our own R&D team and core technology patents. We customize complete line solutions based on your material characteristics, production capacity requirements, and workshop layout. By flexibly combining and matching Z-type elevators, dual-head weighing scales, hexahedral vacuum units, and other equipment, it can meet production needs across multiple categories and specifications. Our fully automated hexahedral vacuum packaging production line serves industries including grain, feed, chemicals, and snack foods. Serving hundreds of manufacturers abroad, we have gained unanimous recognition from our customers for our high efficiency, accurate metering, and stable vacuum effect, making us the preferred partner for granular vacuum packaging.
