An animal feed mixer is a core piece of equipment in modern livestock farming and feed processing. Its aim is to forcibly mix various raw materials, such as concentrates (grains, soybean meal), roughage (silage, hay, straw), premixes, vitamins, minerals, oils, and water, according to a formula ratio to form a uniform and consistent complete diet or compound feed. This completely prevents animals from being picky eaters and ensures that every bite of feed is nutritionally balanced. It improves feed conversion rate, reduces waste, and lowers farming costs.
Parameter of the Feed Mixing Machine
| Parameter | Details | ||
| Model | FL-800L | FL-1500L | FL-2800L |
| Barrel Size (WDH) | 1.5*0.75*0.85 m | 2.0*0.5*1.0 m | 2.5*1.1*1.2 m |
| Overall Size (LWH) | 2.3*0.8*1.75 m | 3.3*1.1*2.0 m | 3.5*1.25*2.1 m |
| Barrel Thickness | 3 mm | ||
| End Cap Thickness | 4 mm | ||
| Internal Ribbon Thickness | 4 mm | 6 mm | |
| Main Motor Power | 7.5 kW | 11 kW | 15 kW |
| Channel Steel Size | 10/12 cm | 12 cm | |
| Reducer Model | x5/250 | x5/350 | 350 |
How to Use the Animal Feed Mixer Machine?
- Preparation: Check the wiring and grounding of the main motor and reducer, and confirm that there are no foreign objects in the drum. Next, clean out any remaining materials and prepare the raw materials according to the formula (long fibers need to be chopped). Check the reducer lubricating oil level.
- Feeding and Mixing: Start the main motor under no-load and ensure it runs smoothly. Open the lid and add the materials in the following order: coarse materials, fine materials, and additives. Tighten the lid. Set the mixing time and stop the main motor after mixing thoroughly.
- Unloading and Cleaning: Start the discharge motor and open the backup discharge port to unload. After unloading, briefly start the main motor to shake off any residue. Last, turn off all motors and the main power supply, and open the cleaning port to clean any residue inside the bucket.
Features of the Poultry Feed Mixer

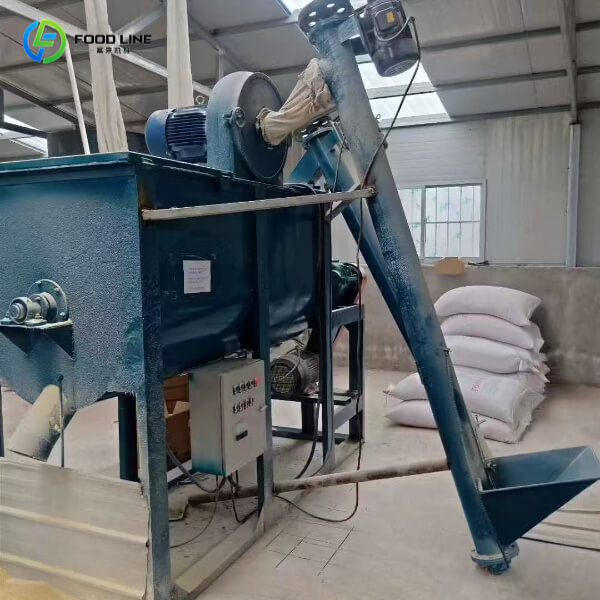

- Automatic Feeding System: The animal feed mixer uses an auger structure to automatically convey powdery materials. The feeding hopper can place on the ground or buried in the ground, completely replacing manual feeding and greatly reducing labor intensity.
- Core Mixing Structure: A double-layered, counter-rotating spiral structure enables materials to undergo high-speed, three-dimensional motion, tumbling up and down and shifting left and right. This achieves highly uniform mixing in a short time, preventing nutrient stratification.
- Intelligent Discharge System: Pressure sensors detect gravity to achieve automatic weighing and metering. After the bag is sensed by gravity, the computer board controls the discharge, resulting in high proportioning accuracy.
- Leak-proof Design: The 60 valve bag’s dedicated grinding nozzle has an air outlet to prevent material spraying. Three small cylinders control the bag pressing and tube clamping to prevent bag drop and powder leakage, freeing up manual labor.
Advantages of the Animal Food Mixer Machine
- High Durability: The animal feed mixer has a thickened barrel and screw belt, as well as a sturdy channel steel frame. It is wear-resistant and corrosion-resistant, and the whole machine operates stably with low vibration and low noise.
- High Degree of Automation: The animal feed mixer reduces manual operation throughout the entire process, from automatic feeding to precise metering and discharging. This improves production efficiency and formula stability.
- Easy to Operate: The control panel features a power indicator light and start and stop buttons for the elevator and mixer, allowing for one-button control. Easy for beginners to use.
- Safety: The poultry feed mixture machine has an emergency stop switch. In case of any abnormality, the power supply to the entire machine can be cut off immediately to ensure the safety of personnel and equipment.
- Widely Applicable: The poultry mixer machine can mix dry powder, wet feed, pelleted feed, high-fiber raw materials, etc. Suitable for formulating feeds for various livestock and poultry such as pigs, cattle, sheep, and chickens.
FAQ
The auger structure ensures smooth conveying and is less prone to clogging. If the material has high moisture content or high viscosity, a custom-designed belt-shaped blade can be added to improve conveying stability.
The feed mixing machine can mix dry powder, wet materials, granular materials, high-fiber silage, and straw. It can also mix powdery materials in the chemical and building materials industries.
Common faults (such as material jamming and motor overload) can be resolved by clearing the material and checking the power supply. We provide an operation manual and remote technical guidance.
Yes, the animal feed mixer can directly connect with a material cart, and the metering outlet can be suitable for a valve-type packaging machine, a ton bag machine, etc. It can realize an integrated production line of “mixing, metering, and packaging”.
Why Choose Foodline Machinery?
We possess mature production processes, strict quality control, and a comprehensive after-sales service system. With stable performance, high cost-effectiveness, and timely technical support, our products old both domestically and internationally. We can provide a one-stop service tailored to your farming scale, site conditions, and production needs, including model selection, customized production, installation and commissioning, and after-sales spare parts supply. If you want to learn more about us, please contact us as soon as quickly and place your order!
