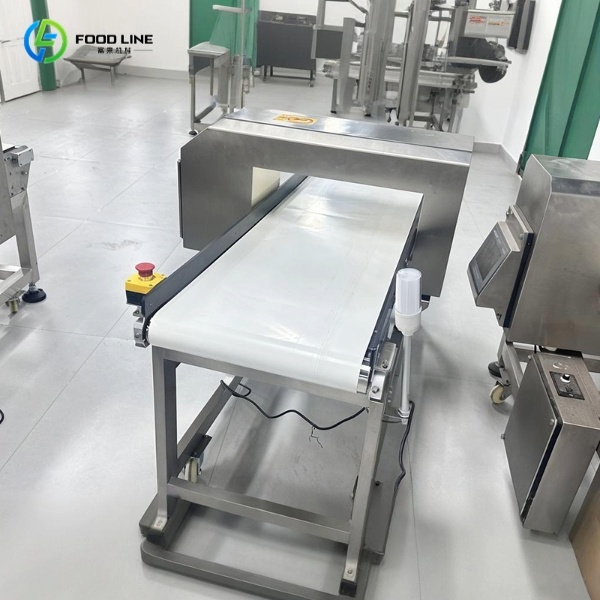

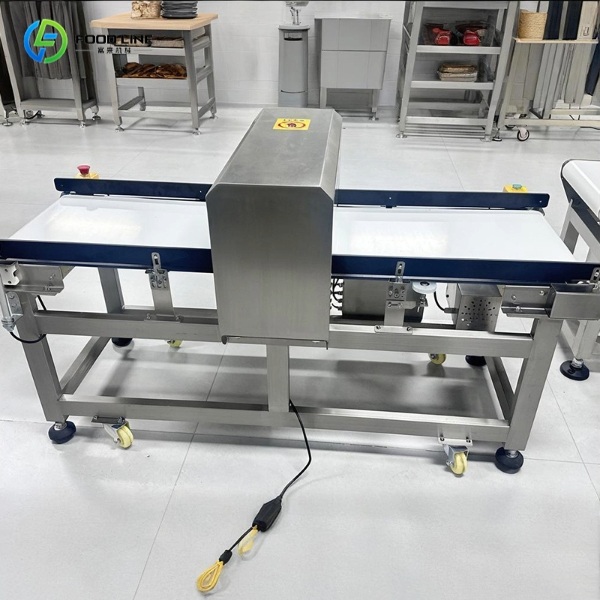

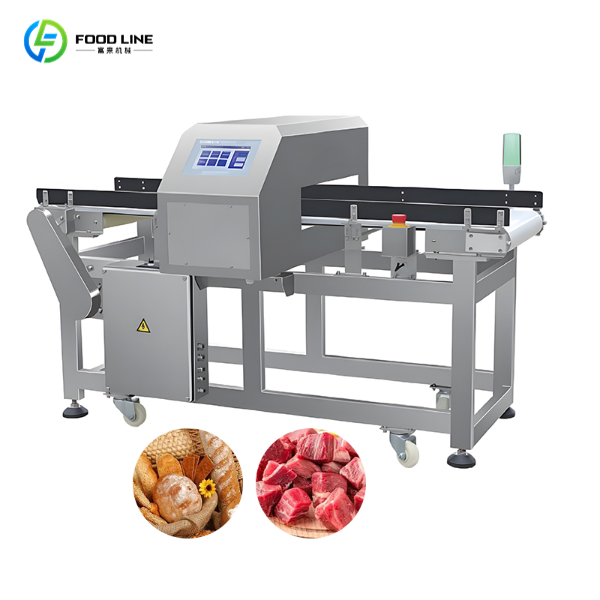

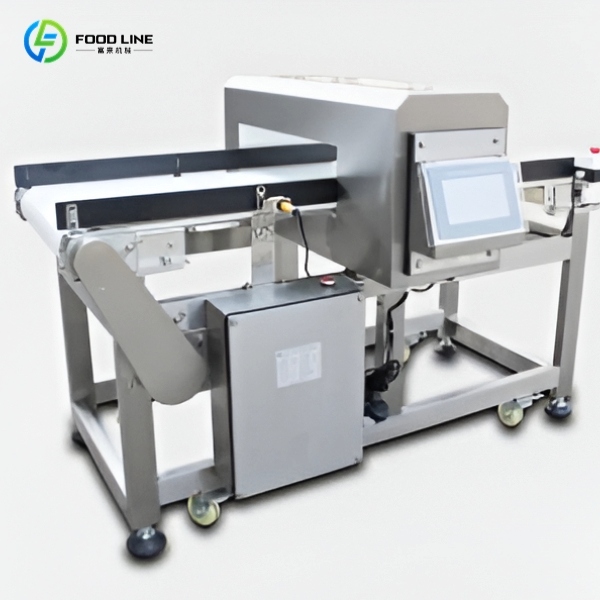

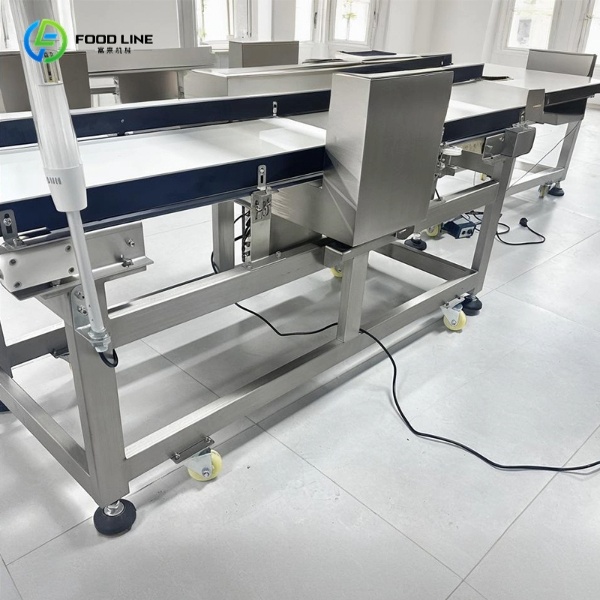

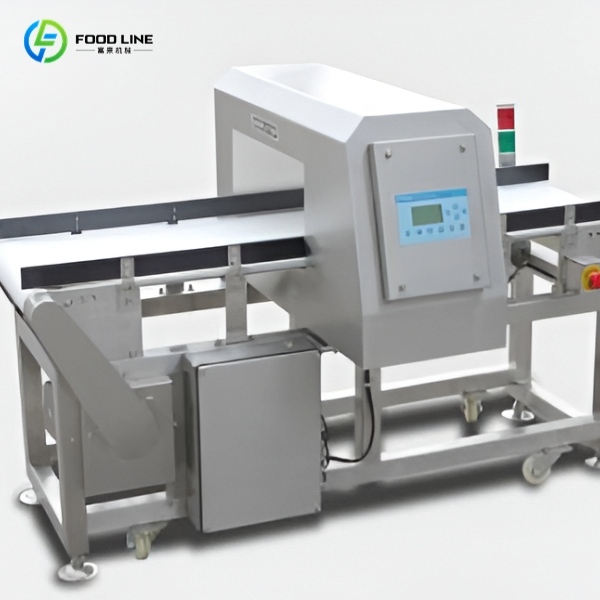

The food metal detector machine is a new generation of intelligent metal detection equipment developed using digital intelligent technology. It is used to detect metal impurities such as metal chips, broken needles, iron wires, lead, copper, aluminum, tin, and stainless steel mixed into raw materials or products. It achieves full digitalization and intelligence in metal detection technology, with excellent performance and simple operation, helping to improve production efficiency and ensure product quality.
Parameter of the Food Detector
| Parameter | Details | |||||||||
| Model | 3010 | 4015 | 5015/5020/5025/5030 | 6030/6035/6040/6050 | ||||||
| Passing Width (mm) | 300 | 400 | 500 | 600 | ||||||
| Passing Height (mm) | 100 | 150 | 150 | 200 | 250 | 300 | 300 | 350 | 400 | 500 |
| Sensitivity (Fe Φ) | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 |
| Sensitivity (Non-Fe Φ) | 1.0 | 1.2 | 1.2 | 2.0 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 5.0 |
| Sensitivity (SUS Φ) | 1.2 | 1.5 | 1.8 | 2.2 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.5 |
| Speed (m/s) | 0.25 ~ 0.6 | |||||||||
How to Use the Food Metal Detector?
- Power-on Self-test: Connect the power supply and start the equipment. Wait for the automatic fault detection to complete and confirm that the metal detector food glass is in a normal ready state.
- Parameter Setting: After a new product passes through the detection channel, press the one-button self-learning function to automatically save the parameters. Existing products can directly access the stored product parameters.
- Production Inspection: The food metal detector machine conveys products at a standard speed of 0.25~0.6m/s. If an alarm occurs, immediately stop the machine and check for metal foreign objects.
- Shutdown: After completing the production, stop the conveyor belt, shut down the equipment, export the alarm log, and clean the equipment cavity and conveyor belt.
Features of the Food Metal Detector Machine
- Intelligent Operation: The food metal detector machine has a touchscreen and an LCD screen, capable of storing over 200 product testing parameters. Once the parameters are set, they are permanently saved and can be directly recalled for future use without repeated adjustments.
- Data Management: The food manufacturing metal detector supports the storage, display, and statistics of user access logs and detection data. The device alarm log can store 700 entries, meeting the audit requirements of the food industry.
- Customized Solutions: Solutions can be tailored to the size, weight, and characteristics of the product being tested, matching optimal testing accuracy. Suitable for all categories of food production, including snacks, meat, frozen foods, and dairy products.
- Customized Systems: We support customized automated conveying, rejection, and control systems to match your production line characteristics, achieve seamless integration with existing lines, and boost production efficiency.
Advantages of the Food Safety Detector
- Simple to Operate: The industrial metal detectors for food feature a one-click self-learning function, which can automatically and accurately set and memorize product parameters. It does not require complicated manual adjustments, making it extremely easy to use.
- Precise Detection: High sensitivity allows for the identification of various metals, and it features automatic fault detection and alerts upon startup, effectively preventing invalid detections.
- Easy to Maintain: The food metal detector machine adopts a modular design and assembly. It makes assembly, debugging and disassembly simple, easy to maintain and low maintenance cost.
- Supports Multiple Languages: In addition to Chinese and English, the metal detector for food also offers a variety of other languages to choose from.
FAQ
The food safety detector instrument with a one-click self-learning function can accurately match product characteristics and greatly reduce false alarms.
The food detector can customize testing parameters according to the size, weight, and characteristics of the product. It is suitable for the production of all categories of food, including snacks, meat, frozen foods, and dairy products.
The food metal detector machine supports customization with waterproof, dustproof, vibration-proof, and explosion-proof versions to meet the safety production requirements of demanding workshops.
The food metal detector is extremely easy to operate, supports one-click self-learning, and one-click parameter calling. And novices can master the operation in 10 minutes without complicated training.
Why Choose Foodline Machinery?
Our company has focused on the research, development, production, and sales of food metal detection equipment for many years. We possess a mature technical R&D team and standardized production lines. All our products undergo rigorous quality testing, ensuring stable and reliable performance. Our equipment supports customized solutions to suit various food production lines and environments. We provide one-stop service from solution design and installation to after-sales maintenance, offering timely response and worry-free after-sales support. Our products sell well in overseas markets and are widely used in snacks, meat products, frozen foods, grains and oils, condiments, and other fields. Their high sensitivity, high stability, and cost-effectiveness have earned the long-term trust of numerous customers, making them a reliable choice for your food safety production.
