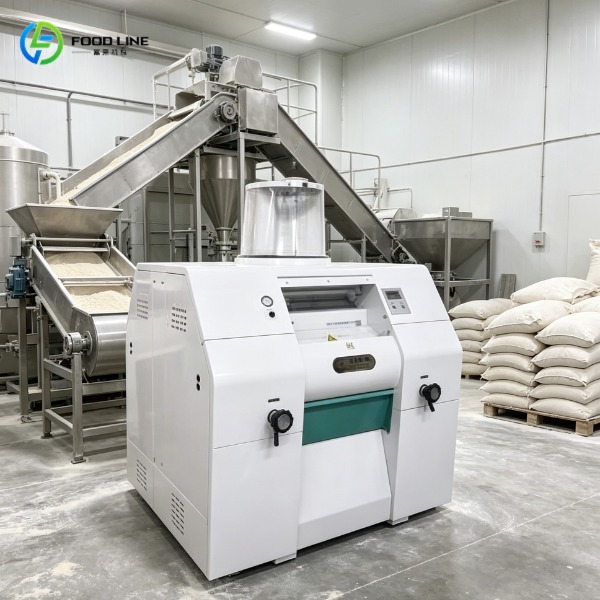

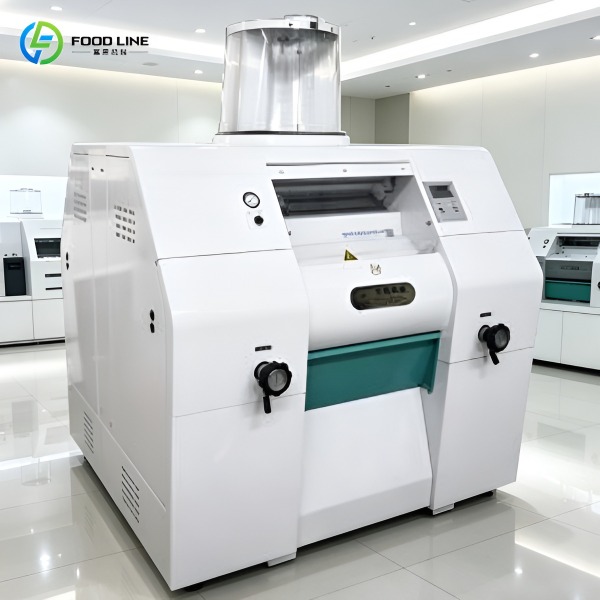

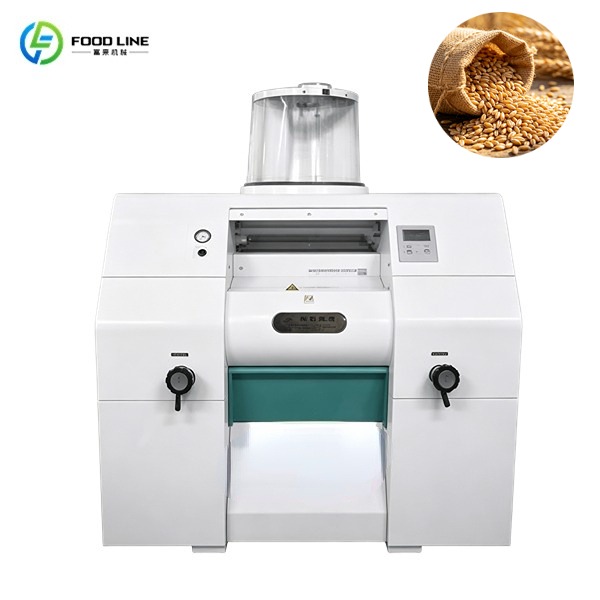

A wheat flour milling machine is the core equipment in a flour mill. It uses a pair of grinding rollers that rotate at different speeds and in opposite directions. These rollers separate the wheat endosperm from the bran and grind it into flour. During operation, the material is subjected to a combination of compression, shearing, and scraping actions. This helps achieve efficient grinding. Each machine has two independent systems: transmission, feeding, and grinding. Each system performs its own specific function in the flour milling process.
Parameter of Wheat Flour Milling Machine
| Item | Details | |||
| Model | FL-25/60 | FL-25/80 | FL-25/100 | FL-25/125 |
| Roller Size (mm) | Φ250×600 | Φ250×800 | Φ250×1000 | Φ250×1250 |
| Fast Roller Speed (r/min) | 450-600 (customizable) | |||
| Speed Ratio (Fast/Slow) | 1.25:1 / 1.5:1 / 2:1 / 2.5:1 | |||
| Power (kW) | 5.5-30 | |||
| Overall Dimension (mm) | 1410*1490*1895 | 1610*1490*1895 | 1810*1490*1895 | 2060*1490*1895 |
| Weight (kg) | 2700 | 3000 | 3300 | 4100 |

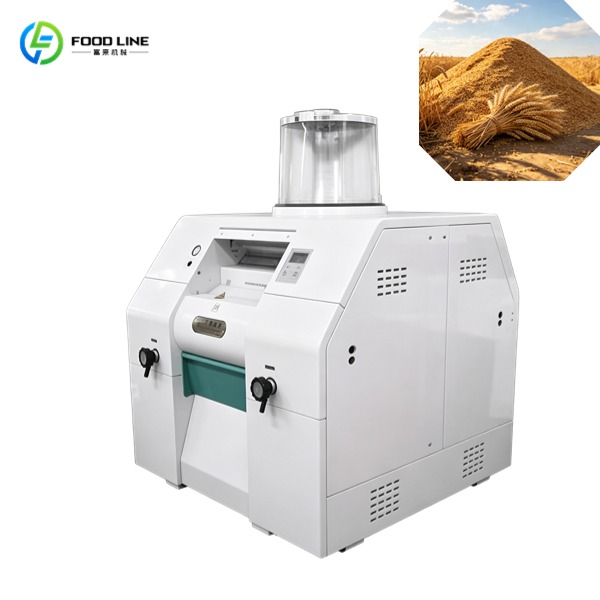

How to use the electric wheat grinder?
- Inspection Equipment: Confirm that the grinding rollers, drive belt, and vibration damping pads are not loose, and that the dust collection and suction device is unobstructed. Set the high-speed roller speed and the high-speed/low-speed roller ratio. Start the dust collection and suction system.
- Feeding and Grinding: The cleaned wheat is fed evenly into the feeding port, and the material will automatically enter the grinding zone of the horizontal grinding roller.
- Operation Monitoring: Observe the equipment’s operating status to ensure smooth transmission, low noise, and no tooth skipping or deviation. Use the roller gap suction device to cool the equipment in real time to prevent the grinding rollers and materials from overheating and affecting flour quality.
- Shutdown and Maintenance: First, stop feeding and allow the grinding rollers to idle and discharge all material. Next, turn off the power system, then turn off the suction and dust removal systems. Last, clean any remaining material from the grinding area and check the wear of vulnerable parts.

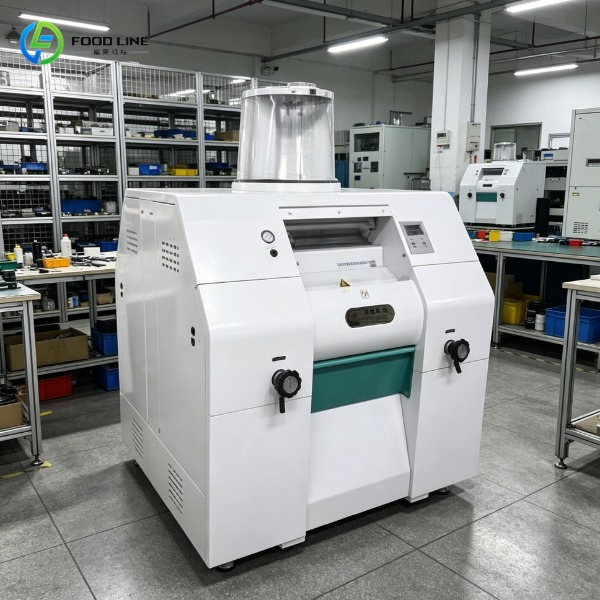

Features of Wheat Grain Mill
- Full Pressure Control: The wheat flour grinding machine supports both stand-alone independent control and remote centralized control modes. It can adapt to different production management needs.
- Independent Support Structure: The grinding roller assembly adopts an eccentric lever clutch structure for independent support. So it can independently withstand working stress and operate more stably.
- Smooth Transmission System: The fast and slow rollers adopt a three-wheel toothed wedge belt drive. It transmits high power without tooth skipping or deviation. Operation is smooth and noise is low.
- Vibration Damping Structure: The side frames are designed with upper and lower sections. Vibration damping pads are provided at the connection points to effectively reduce equipment vibration.
- Temperature Control Device: The core features a roller-gap suction device, which can improve feeding conditions. At the same time, it reduces the temperature of the grinding roller and the material, ensuring flour quality.
Advantages of Wheat Flour Milling Machine
- Flexible Control: The machine can be operated as a standalone unit or managed remotely in a centralized manner. It is also very easy to use.
- High-quality Flour: The rolling gap is precisely adjustable, resulting in uniform flour size. The wheat flour making machine effectively separates the bran and endosperm, ensuring stable finished product quality.
- Simple and Durable: The grinding rollers are easy to assemble and disassemble, with a robust and wear-resistant structure and few vulnerable parts. So the wheat mill grinder has a long service life and low ongoing costs.
- Wide Range of Applications: The wheat milling machine can grind not only wheat, but also corn, barley and other grains. It is compatible with a variety of grain production lines.
FAQ
The lifespan of core components is determined by the hardness of the materials used, generally ranging from 3 to 10 years.
This industrial grain grinder boasts advantages such as full automation, high efficiency, and low power consumption. It requires only manual observation and finished product packaging.
After-sales service includes installation guidance, remote debugging, technical support, and a one-year non-human-caused warranty.
This wheat flour milling machine is suitable for a wide range of materials, and the processing fineness can be customized according to user needs.
