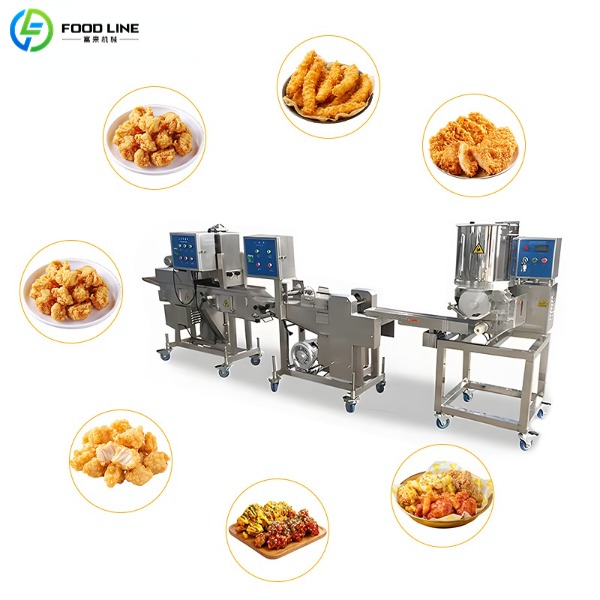

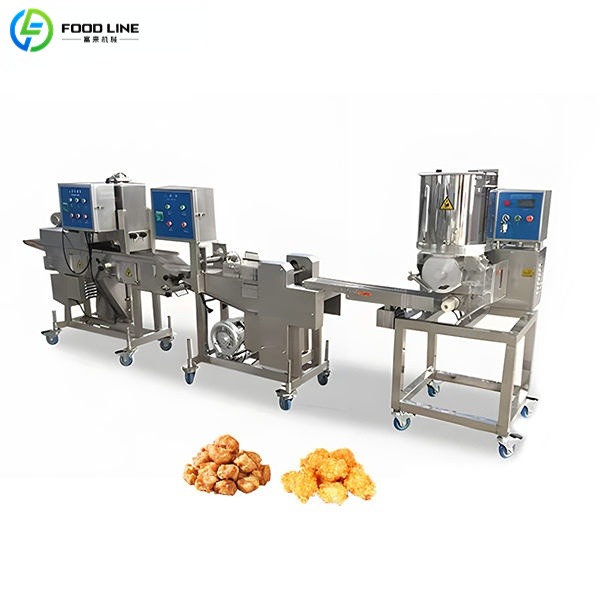

The fully automated chicken nuggets production line is an integrated industrial continuous production system that combines raw material pretreatment, shaping, coating, frying, cooling/freezing, and packaging. It is designed for the large-scale production of golden, crispy, and uniformly shaped chicken nuggets (such as Colonel’s Chicken Nuggets and Chicken McNuggets). It is suitable for frozen food factories, chain restaurant central kitchens, and large poultry processing enterprises.

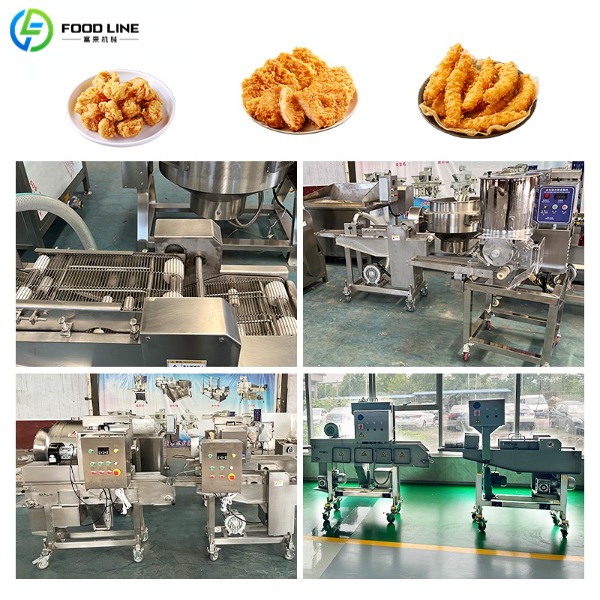

Key Components of the Industrial Chicken Nuggets Production Line
| Machine | Function |

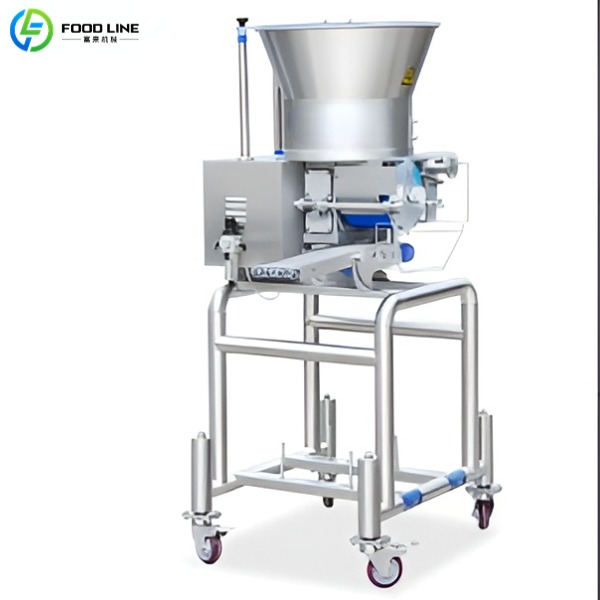

| Molding Machine | Press the minced meat into uniform shapes |
| Vacuum Tumbler | Vacuum aseptic marinating |

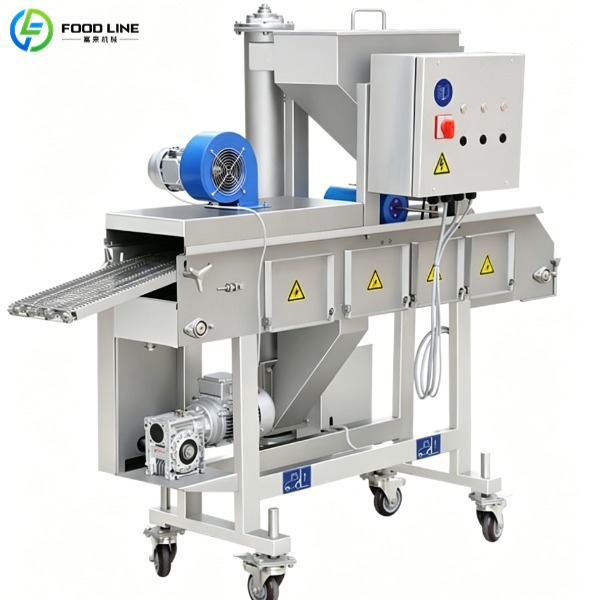

| Powder Coating Machine | Coat the chicken nuggets with flour |
| Deep Fat Fryer | Continuous and uniform frying |
Technical Parameters of the Chicken Nuggets Production line
| Equipment | Size(mm) | Power |
| Molding Machine | 960*650*1530 | 0.55KW/380V |
| Vacuum Tumbler | 1300*800*1300 | 0.75KW/380V |
| Powder Coating Machine | 1730*650*1480 | 0.98KW |
| Deep Fat Fryer | 2500*1200*1400 | 48KW |
How does the Chicken Nugget Processing Line Work?
- Raw Material Processing: Receiving, thawing, mincing, chopping, and marinating raw materials lays the foundation for quality in subsequent processing.
- Shaping and Coating: The minced meat is shaped into uniform pieces using a shaping machine, then coated with batter and flour/rice bran to give the product a crispy outer shell.
- Frying: A continuous fryer with precise temperature and time control ensures even frying of the chicken pieces, guaranteeing stable color and flavor.
- Post-Processing: After degreasing, cooling, seasoning, and screening, the product is packaged to improve shelf life and flavor stability.

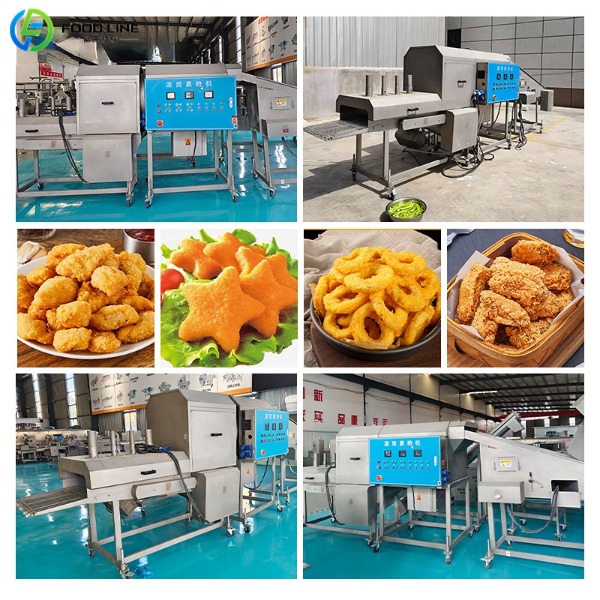

Features of the Commercial Chicken Nugget Processing Line
- Standardized Forming: Utilizing a modular mold design, it supports multiple shape switching and precise thickness adjustment. This ensures that each chicken nugget has a completely consistent weight and shape, guaranteeing even frying.
- Uniform Coating: Through a waterfall/dipping batter coating and roller coating system, the product surface is evenly coated with batter and breading, resulting in a perfectly scaly appearance and highly uniform crispness.
- Precise Temperature Control: A traceable PID intelligent temperature control system with an accuracy of ±0.5℃ monitors oil temperature in real time. Combined with a variable frequency conveyor belt, it ensures consistent doneness, color, and flavor for each batch.
- Low Oil Content Design: A dual centrifugal/hot air degreasing device reduces the product’s oil content to below 18%, better meeting modern health-conscious consumer demands and extending shelf life.
Advantages of the Chicken Nuggets Production Line
- High Efficiency: Adopting a 24-hour continuous production mode, the daily production capacity of a single line can reach 10-30 tons, which is more than 50% higher than that of traditional intermittent equipment. Moreover, the fully automated operation only requires 1-2 people to monitor, saving more than 50% of labor costs.
- Energy-saving and Oil-saving: The chicken nuggets production line adopts advanced frying and oil filtering technology, extending the service life of edible oil and reducing oil waste. The equipment has a high thermal utilization rate and lower energy consumption, effectively reducing production costs in the long run.
- Consistent Quality: Precise and controllable conveying, temperature control, and forming systems ensure consistent product quality. This avoids issues such as burning, undercooking, and defects, resulting in a high finished product qualification rate and reduced raw material waste.
FAQ
The equipment can be configured to produce different capacities. The standard model can produce several to tens of tons per day and supports 24-hour continuous production, making it fully compatible with small, medium and large food processing plants.
The production line has oil-water separation and automatic oil filtration devices, which can filter residues, delay oil deterioration, and significantly extend the oil change cycle, with oil costs far lower than traditional equipment.
The production line supports customized molds, adjustments to coating thickness and frying parameters, and can produce various types of chicken nuggets such as original, spicy, and crispy, with flexible and adjustable product styles.
Absolutely. The industrial chicken nugget processing line can directly connect equipment such as quick-freezing tunnels and cold storage facilities to achieve instant quick-freezing of fried products. It is suitable for the mass production of frozen chicken nuggets, with seamless integration throughout the entire process.
Foodline Machinery- Food Machinery Manufacturer
Our company has focused on the research and development and manufacturing of food processing equipment for many years, possessing a mature technical team and a modern production base. All our complete fried chicken nugget production lines undergo rigorous quality inspection, ensuring stable performance and superior quality. Our products sell well in many overseas regions and have received consistent praise from international customers. We can provide customized complete line solutions based on customers’ production capacity, site conditions, and product requirements. We also offer comprehensive pre-sales consultation, installation and commissioning, and after-sales maintenance services to help food companies achieve efficient production and steady development.
